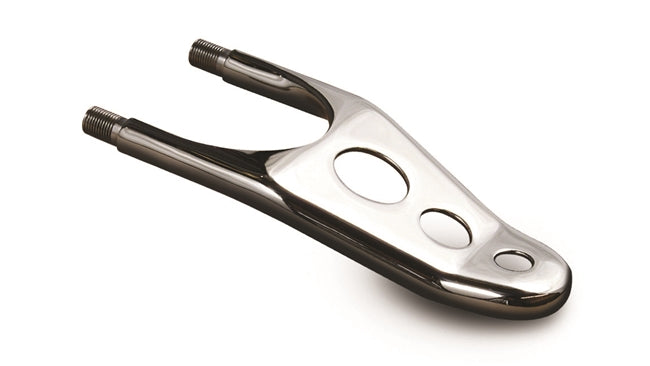

OTB Upper Side Steer Steering Arm Polished

OTB Upper Side Steer Steering Arm Polished

$350.19 - $350.19
$350.19
$350.19 - $350.19
$350.19
by Roadster Supply
SKU OTB-7001

Fits 1928 - 1948 Ford spindles. Engineered for side steer applications. Fully polished investment cast stainless steel. Accepts 5/8" or 11/16" Ford tie rod ends. Tapered 7 degrees in both direction. 1" Drop from center of spindle mount to center of tie rod mount.

Notes

Investment cast, 17-4 stainless steel and fully polished. Beautifully machined and engineered in every detail and even double tapered to provide added adjustability. Taper can be drilled out with a 5/8" drill bit to accept 5/8" heim joint or rod end.

Specifications

For Use With 1928-1948 Ford Spindles

Spindle Mounting Center to Center Width: 3.300"
Mounting Flange to Tie Rod Center: 6.375"
Drop from Center of Threads to Center of Taper: 1"
Tie Rod End Taper Angle: 7 Degree (TAPERED FROM TOP AND BOTTOM)
Thread Size: 1/2" - 20

Shipping

Heavy or bulky items will need to be picked up or shipped freight. Freight costs will be calculated at time of shipment.
