27 Roadster, Modified Roadster and Modified Coupe Packages

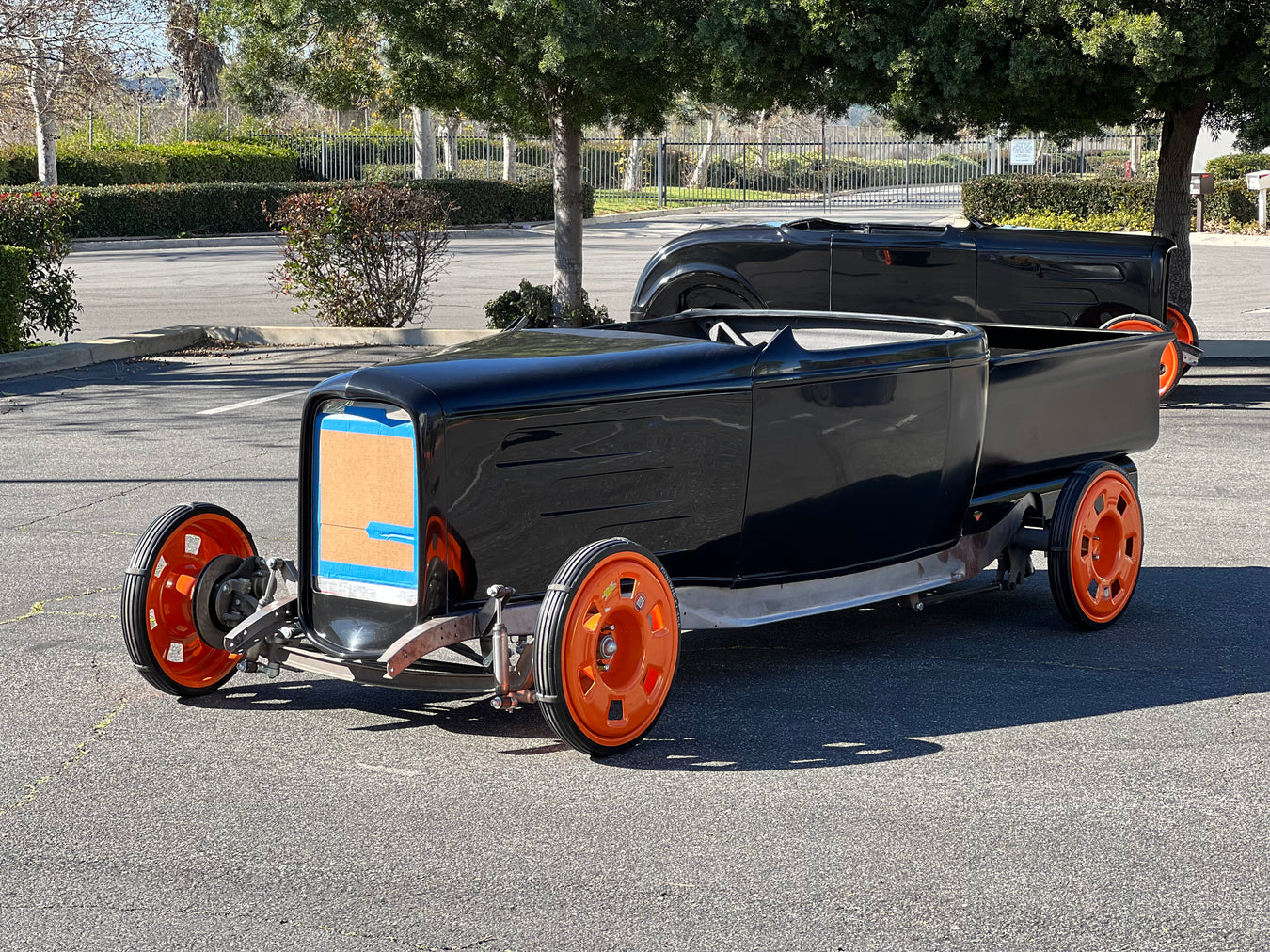

Fabricator Package – This package is for individuals who are looking for a do-it-yourself project. The package includes a hand laid fiberglass or carbon fiber body with steel reinforcements, doors hung and latched, and dash installed. The body is mounted on our basic frame without any bracketry. This allows the fabricator to install suspension and drive trains of their choice.
Good Start Package – This package is for the those looking for a “Bolt Together Option”. The package completes body and frame fabrication leaving installation of suspension and drive train to the builder. Brackets for front suspension and straight axle rear suspension is included. This package includes everything from the fabricator package and adds the steering column drop, windshield post installed and the one-piece tilt hood installed and latched. The frame includes brackets for springs, 4 bars, steering box mount, motor mounts (SBC or SBF) and 350 or 700R4 transmission mounts. The frame included stainless steel brake lines and a Wilwood brake pedal with dual master cylinders. Finishing out with 4 aluminum side aprons mounted to the frame.
Suspension Packages
All suspension components are bare metal. Polished available upon request.
Front Suspension Package – This package includes an I beam front axle with brackets and shackles, a pair of quarter elliptic springs, front spindles, arms and tie rods, steering box, steering wheel and column, drag link and pitman arm, 4-bars including brackets, perch hardware, friction shocks, and polished Wilwood 4-piston disk brakes. This package is designed to match up with any package.
Independent Front Suspension upon request.
Rear Suspension Package –. This package includes a Currie 9in with 31 spline axles, axle brackets, spring hangers, 4-bars, rear gearing of choice, a pair of quarter elliptic springs, friction shocks, and polished Wilwood 4-piston disk brakes with integrated parking brake. The rear housing is unfinished. This package is designed to match up with any package.
Optional - Winters Champion solid axle quick change (unpolished) with rear gearing of choice, polished aluminum 4-bars, axle brackets, spring hangers, a pair of quarter elliptic springs, friction shocks, and polished Wilwood 4-piston disk brakes with integrated parking brake. Polished center section upgrade available upon request. This package is designed to match up with any package.
Independent Rear Suspension – This package includes a Winters Champion independent center section (unpolished) with rear gearing of choice, inboard barke system, polished control and trailing arms, polished 1018 cold rolled uprights, tapered half shafts, transverse leaf spring, friction shocks, and polished Wilwood 4-piston disk brakes with integrated parking brake. Polished center section and chrome half shafts available upon request. This package is designed to match up with any package.
